Blood Bank Equipment

Plasma Extractor

Plasma Extractor is designed to Extract Blood component from centrifuged Bags. The spring loaded front panel applies pressure on the collected bag causing the liquid to contain in transfer bag. ifs sturdy construction makes it durable and reliable, easy to use and portable. The unit is available in both versions automatic and manual.

Sensor	–	Infra Red
Clamping Control	Manual	Motor Activated
Pressure Plate	Acrylic	Acrylic
Alarm	–	Audio Visual

Hot Air Oven

Hot Air Oven a laboratory instrument which is used for various applications in several industries. Hot air oven device is driven by advanced technology which is mainly used to sterilize the product with dry heat. Professionally Triple walled construction helps this device complete its task silently. Dry heat is suitable for sterilizing metal instruments that rust or dull in the presence of the water vapour. With the help of a thermostat it controls the temperature of the inner chamber for the required time. Air circulating fans help to provide uniform distribution of heat. The major reason hot air ovens are getting popular is because hot air ovens do not require the water or pressure to be built up in the oven, that is why the chemical industry, pharmaceutical and hospital use to sterilize the product in hot air ovens.

Double Pan Balance

Features – Time saving and Fatigue Reduction Helps in achieving quality components Micro Controlled Based Technology for High Accuracy Auto Calibration Tare provision to account for the weight of the blood bags Optimum balancing with accuracy and precision ( Deviation + 0.01%)

Capacity	6 KG Accuracy + 1 gm
Consumption	15 VA
Input Volt	220 -240AC50 Hz, Single Phase

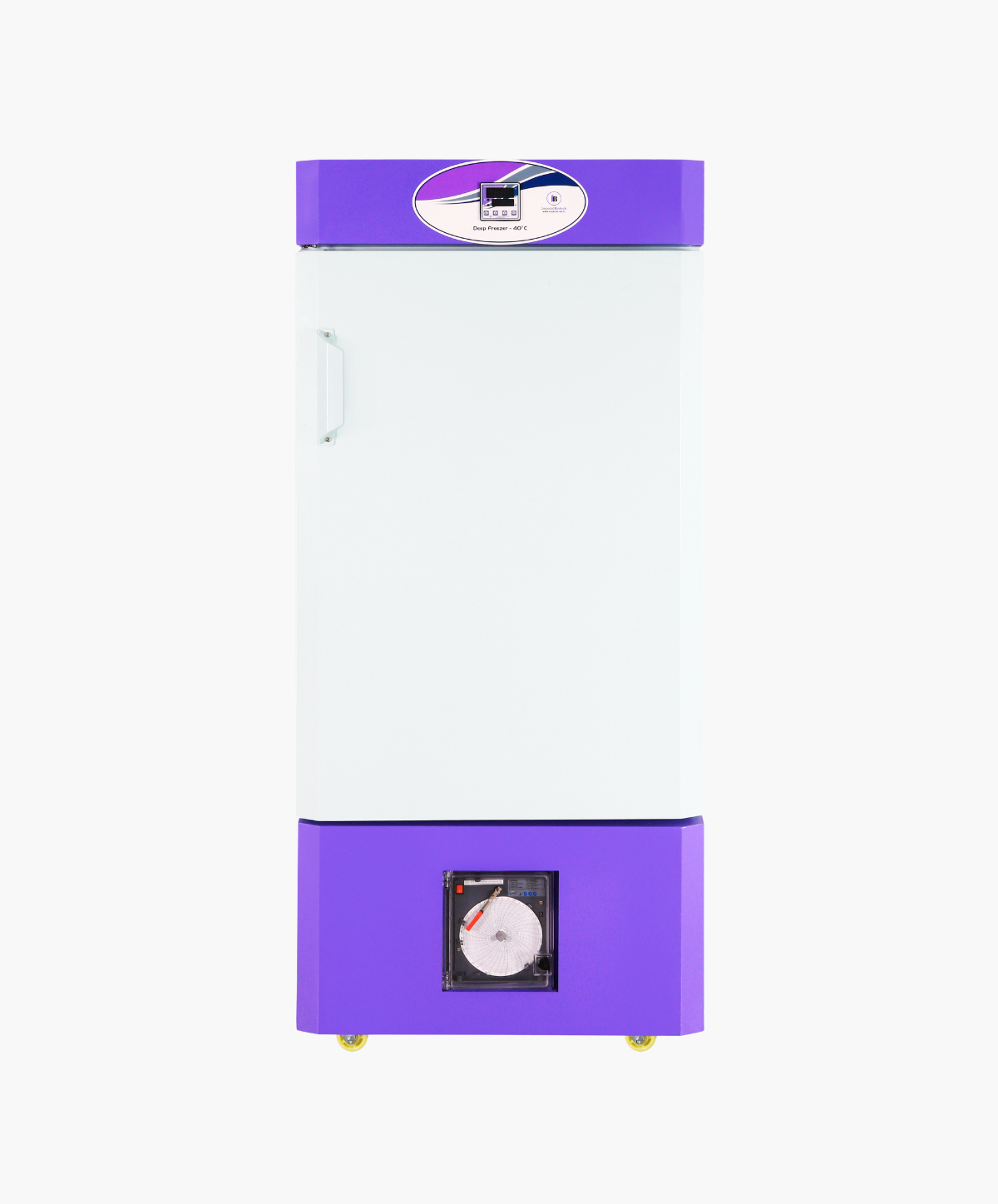

Deep Plasma Freezer

Plasma Freezer provides an ideal freezing environment for the preservation of Plasma bags and test samples. This unit is designed to maintain a stable and uniform temperature of upto -40°C and available in vertical & horizontal with different sizes. The user-friendly design includes a built-in stainless steel insulated inner door, and simple calibration is possible via the control panel. This coupled with a visual and audible alarm system, ensures that your samples are both safe and secure.

Other Features Of This Unit Include:

Micro controlled temperature controller with audio visual alarm for high & low temperature.
Display of Set and Process value.
Extra-strength non CFC refrigeration system.
The unit is mounted on coster wheel for easy mobility.
CFC free PUF (Poly Urethane Foam) insulation to ensure temperature.
Stability ans save power consumption.

Blood Collection Monitor

Blood Collection Monitor is a compact unit that provide safe and smooth action to ensure mixing of Blood and Anticoagulant without damaging Blood Cells during collection of Blood from a donor.

Input Voltage	220-240V AC	220-240V AC
Alarm Type	Audio Visual	Audio Visual
Battery Support	NA	Upto 10 Hr
Weight	5 Kg approx	6.25 Kg approx
Osciliation RPM	12+2 RPM	12+2 RPM

Microprocessor based controller system with accuracy of +/-1ml.
Meant for Blood Bank camp purpose for easy and safe blood collection.
Pre selection of volume /16×2 Jumbo LCD Display with white Back light.
Mixing speed of 12 to 14 RPM for gentle and smooth mixing with anticoagulant prevents Clot Formation.
End to end gentle blood mixing with coagulant and control of collection time.
Audio and Visual alarm for high flow {>ml/min) and low flow {<20ml/min) and commencement of collection
Auto Tare facility / Auto release function with removable Magnetic tray
Automatic check on Blood flow rate and collection and during collection.
Motorized Clamping with manual pause /clamping to temporary suspends the process.
Display of set Volume Process volume ,Weight flow rate , time and cument status and Battery Percentage
Volume can be set 1 ml increment with 2 pre set points (350 8450 ml.
Volume can be set from 1 ml to 999 ml.
Provision for pausing collection and change program during blood collection.
Adjustable low flow & High flow point

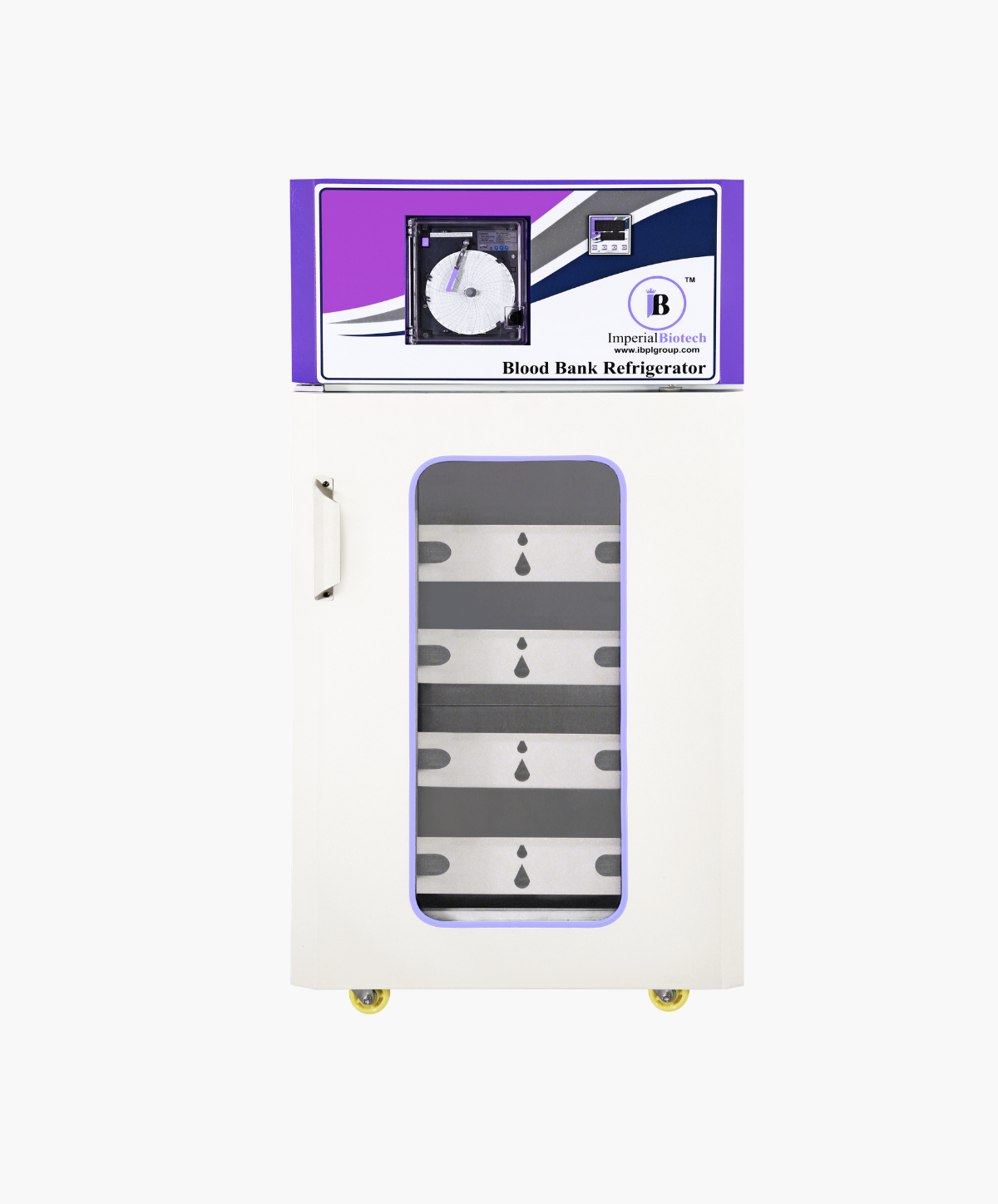

Blood Bank Refrigerator

Blood Bank Refrigerators are available in different sizes and designed to meet strict requirement for storage of whole blood. The complete selection of 4°C refrigerators includes the micro controlled temperature controller having Audio Visual Alarm in case of temperature deviation.

Silent Features –

Heavy duty stainless steel racks.
Extra-strength, non CFC refrigeration system.
The unit is mounted on castor wheel for easy mobility.
CFC Free PUF (Poly Urethane Foam) insulcation to ensure temperature stability and save power consumption.
Safety Thermostat for avoiding negative temperature.
Settable points forTemperature set point High / low temperature alarm point Buzzer off time
Audio Visual alarms forTemperature high / low Power failure Sensor open / Short Door Open Compressor on (only visual) Power on {only visual}

Blood Bag Tube Sealer

Blood bag tube sealer is used to seal the blood bag tube by radio frequency. The sealing can be achieved in less then 1.5 seconds per tube by simple operation. Complete sealing of the blood bag tube is achieved by high frequency dielectric heating. Sealing of each tube takes approx 1.5 seconds and is thus very efficient. Pulling the sealing section to both sides can readily cut of sealed tube. Specifications

Radio Frequency	40.68 MHz	40.68 MHz
Input Voltage	220-240 AC	220-240 AC
Sealing Time	1.5 Sec.Approx	1.5 Sec.Approx
Fuse	5 Amp	5 Amp
Weight	4.5 Kg Approx	5.25 Kg Approx
Size	170x210X110 mm	170x210X110 mm
Battery Support	NA	800 seal
Power Consumption	100 VA	100 VA

Blood Bag Digital Weighing Balance – Single Pan

Blood Bag Digital Weighing Balance – Single Pan

Features

A Microprocessor based single pan analytical balance with high accuracy and precision is required
Weigh accuracy of upto III decimal place
Having a auto-self calibration facility
Having a auto zero setting
Having one touch calibration
Weighing capacity upto 500 gm
Readability and repeatability 0.001/g
Stabilization time <5 secs.
LCD display for showing Weight
Power Input to be 220 V to 240 V. AC, 50 Hz
Provide with suitable UPS with maintenance free batteries for minimum one hour back up
