New

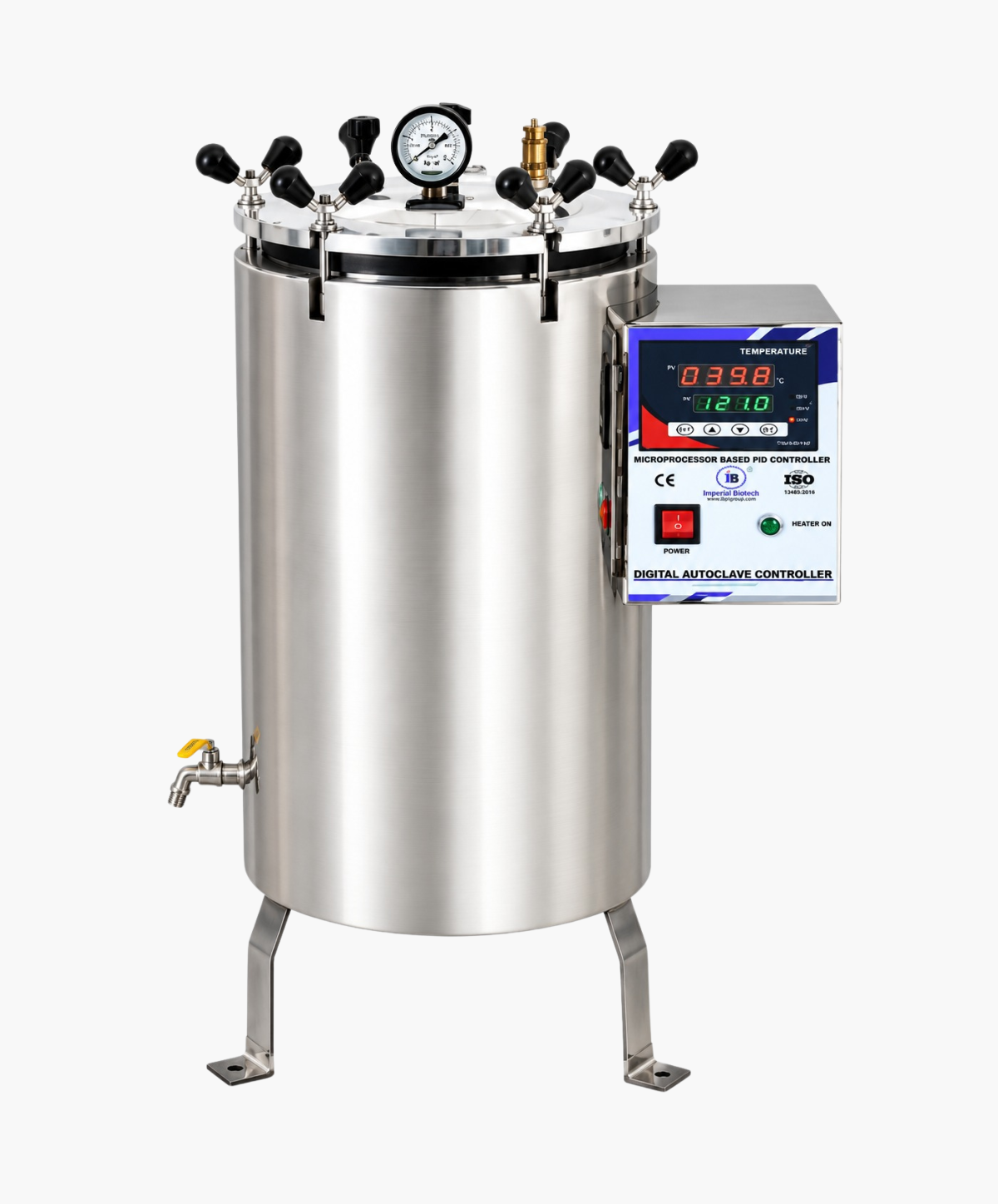

Autoclave

Imperial Biotech’s Autoclave is a reliable steam sterilization system designed for the effective decontamination and sterilization of laboratory materials. It uses pressurized saturated steam to destroy microorganisms and provides dependable sterilization of laboratory glassware, media, reagents, instruments, and other heat-resistant materials.

The system is designed for efficient heat transfer by ensuring effective displacement of air from the autoclave chamber, allowing steam to reach the load uniformly. Imperial Biotech’s Autoclave is also specially designed for the treatment and disinfection of biomedical waste, supporting safe and hygienic waste management practices in laboratories, hospitals, and healthcare facilities.

Model no. - (IAC-01)

Specifications

Capacity: Available with chamber capacities up to 1000 litres to accommodate different sterilization and biomedical waste treatment requirements.
Sterilization Temperature: Operating temperature ranges from 121°C to 138°C for effective steam sterilization.
Compressed Air: Requires compressed air supply of 5.0–7.0 BAR as applicable to the system.
Operating Cycles: Provides vacuum cycle, rapid vacuum cycle, and non-vacuum cycle options, with or without drying, according to the selected program.
Control Panel: Tamper-proof, touch-sensitive control panel with efficient display and recording facilities for critical parameters including time, temperature, pressure, date, and batch number.
Door System: Top-loading door design with a secure locking mechanism. Safety interlock prevents door opening until the cooling cycle has been completed and safe opening conditions are achieved.
Pressure Vessel: Durable stainless steel (SS) pressure vessel/chamber designed to conform to applicable Pressure Equipment Directive (PED) requirements. All metal parts exposed to the inner chamber are made of stainless steel (SS).
Programmable Memory: Multi-program operation with provision to store a minimum of 5 sterilization programs for convenient and repeatable operation.
Alarm System: Audible and visual alarm system for cycle faults, cycle interruption, sterilization failure, low water level, and door-unlocked conditions.
Independent Monitoring: Independent temperature and pressure monitoring systems for enhanced process safety and reliable control of critical parameters.
Power Failure Recovery: Provision for recovery and retention of cycle information in the event of power failure or cycle interruption.
Failure Indicator: Dedicated fail indicator to identify cycle failure or interruption.
Door Indicator: Door status indicator to clearly indicate when the door is unlocked.
Power Supply: Designed to operate on a power supply of 200–250 V, 50 Hz.
Containers: Compatible with stainless steel containers and pans or suitable autoclave-grade polypropylene containers.
Product Certification: Product certification to CE Class II A or US FDA requirements, as applicable.
Quality Certification: Manufactured under an ISO-certified quality management system.
Electrical Safety: Equipment designed to meet applicable electrical safety requirements, such as IEC Class I or relevant ISO standards.
Indigenous Compliance: For indigenous products, compliance with applicable BIS and CPCB standards as required.
- With Customisable size and colour.
